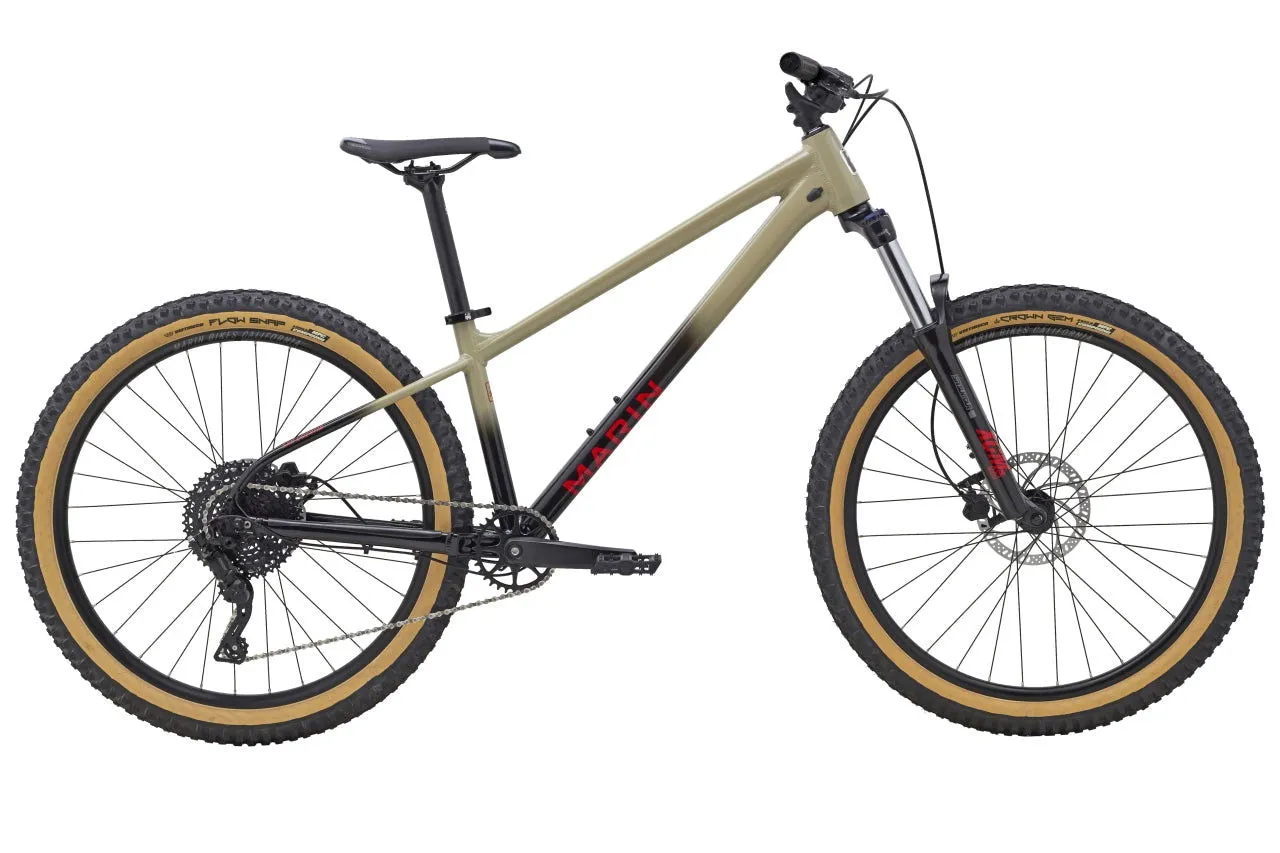

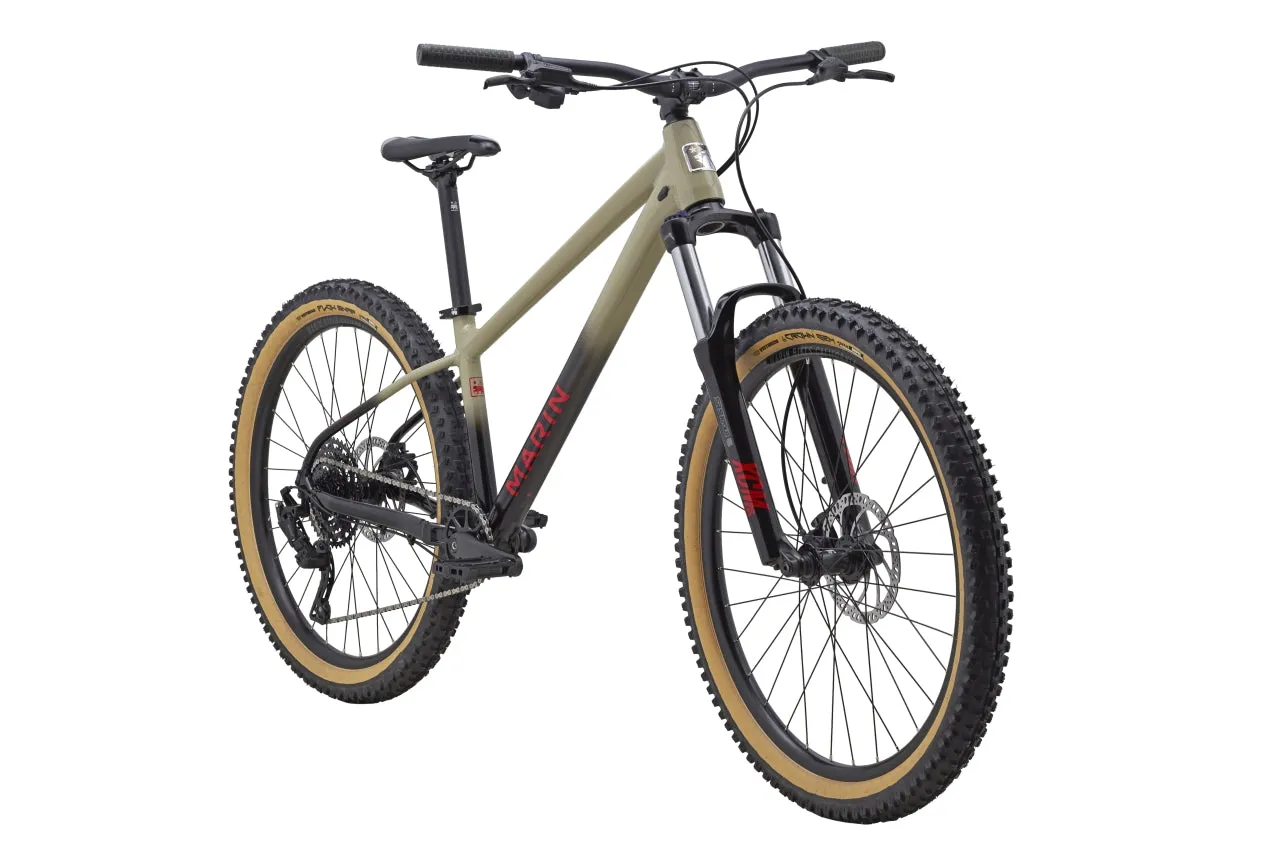

The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time.
Specifications:
Please note - specifications & price subject to change without prior notice.
| 01. FRAME | All New Series 2 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB |
| 02. FRONT SUSPENSION | SR Suntour XCM34 Boost 15x110mm Spacing, 130mm Travel, Coil Spring, 27.5", Bolt-On Thru-Axle |
| 03. RIMS | Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible |
| 04. HUB REAR | Forged Alloy, Quad Sealed Cartridge Bearings, Alloy Axle, QR type, 141mm Width, Disc, 32H, Shimano Standard Freehub Body |
| 05. HUB FRONT | Forged Alloy, 110x15mm, Sealed Cartridge Bearing, Disc, 32H |
| 06. SPOKE NIPPLES | 14g Black Stainless Steel |
| 07. TIRES | Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire Bead |
| 08. DERAILLEUR REAR | MicroShift RD-M9195M, 9 Speed, With Clutch |
| 09. DERAILLEUR FRONT | - |
| 10. SHIFT LEVER | MicroShift SL-M9195-R, 1x9 with Bearings |
| 11. CRANKSET | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing |
| 12. BOTTOM BRACKET | Sealed Cartridge Bearing, Square Taper |
| 13. CHAIN | KMC X-9 |
| 14. CASSETTE | Sunrace, 9 Speed, 11-46T |
| 15. BRAKE FRONT | Tektro M275 Hydraulic Disc Brake, 180mm Rotor |
| 16. BRAKE REAR | Tektro M275 Hydraulic Disc Brake, 180mm Rotor |
| 17. BRAKE LEVERS | Tektro M275 Hydraulic Disc |
| 18. HANDLEBAR | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| 19. STEM | Marin Alloy, 45mm |
| 20. GRIPS | Marin MTN, Closed End |
| 21. HEADSET | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| 22. SEATPOST | Marin Alloy, 30.9mm |
| 23. SADDLE | Marin Speed Concept |
| 24. PEDALS | Nylon Platform |
