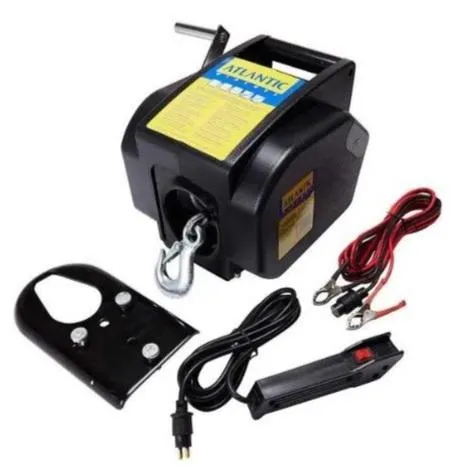

An economical, portable 12-volt electric trailer winch that is ideal for the retrieval of boats up to 7.0 meters. Supplied with a hand held remote for power-in and power-out operation, also with an adjustable free-spooling clutch for launching and retrieving purposes.
A quick release bracket for easy attachment and removal to either the winch post or tow ball, along with an emergency crank handle and galvanised cable and snap hook. Also included is a heavy duty single block with snap hook. Electric motor rating of 12-volt, 25 amps and 300watt, with a rating of 1.3 meters per minute while under load with a 12-month warranty on the electric motor.
Suitable for intermittent use only i.e. the one to three minutes winching time normally taken to retrieve the boat onto trailer. Not suitable for industrial or hoisting applications.
Features
- Ideal for the retrieval of boats up to 7.0 meters- Hand held remote for power-in and power-out operation
- Quick release bracket for easy attachment and removal
- Emergency crank handle
Specifications
- Capacity: 2000lb
- Maximum Boat Size: Max. 5.5m
- Maximum Boat Weight: Max 5000lbs
- Line Speed: 1.3metres/minute with load
- Power Supply: 12 Volt power in
- Power Cord: 3m negative lead / 3m positive lead
- Cable Length: 9m x 4.8mm
- Hook Type: Snap hook
- Gearing: Gear gearshift
- Gear Ratio: 460:1
- Remote Length: 3 metres
- Dimensions: 241 x 191 x 254mm
- Net Weight: 10.8kg
- Capacity: 3000lb
- Maximum Boat Size: Max. 7.0m
- Maximum Boat Weight: Max 5000lbs
- Line Speed: 1.3metres/minute with load
- Power Supply: 12 Volt power in
- Power Cord: 3m negative lead / 3m positive lead
- Cable Length: 9m x 5.4mm
- Hook Type: Snap hook
- Gearing: Gear gearshift
- Grear Ratio: 460:1
- Remote Length: 3 metres
- Dimensions: 241 x 191 x 254mm
- Net Weight: 11.0kg
