We are selling this bike at a big discount because we have too many

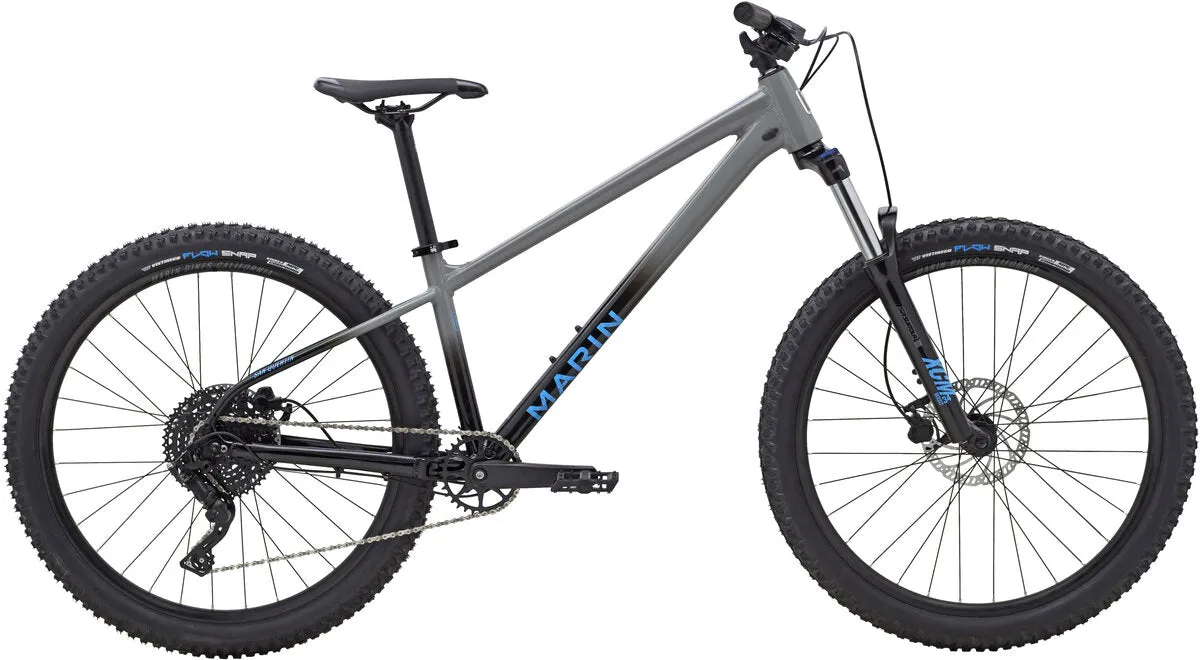

The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time.
Developed in conjunction with freeride legend , and designed to conquer the most rough and tumble trails of Marin County, the San Quentin collection lives up to the notoriety of its namesake. Blending the strength and style of dirt jump frames with the natural trail-savvy of an aggressive hardtail, the San Quentin family is the perfect mash-up for the modern trail rider.
The San Quentin's dialed frame geometry means it's perfect to send down singletrack or rocky trails, yet it's light enough to not destroy you on the way back up. Built around a stout aluminum frame, burly tires, and an aggressive geometry, the result is a bike that will bring back the hardtail buzz. The slack head tube angle paired with a steep seat tube angle creates a balanced rider position that puts your weight between the wheels. The result is perfect front wheel precision on the climbs, and the stability to descend like it’s on rails, pulling through corners with an intuitive feel. The bike's massive standover, slick frame tubes, and fantastic paint job really make it stand out. With ISCG05 tabs for maximum chain retention and the ability to run up to a 2.6-inch wide tire, the San Quentin is built for the new aggressive trail standard.
FRAME
Series 2 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB
FORK
SR Suntour XCM32 Boost 15x110mm Spacing, 120mm Travel, Lock Out, 27.5", Bolt-On Thru-Axle
RIMS
Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H Tubeless Compatible
HUB REAR
Forged Alloy, Quad Sealed Cartridge Bearings, Alloy Axle, 141mm Width, 6-Bolt Disc, 32H, Shimano Standard Freehub Body
HUB FRONT
Forged Alloy, 110x15mm, Sealed Cartridge Bearing, 6-Bolt Disc, 32H
SPOKES
14g Black Stainless Steel
TIRES
Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire Bead
DERAILLEUR REAR
MicroShift Advent, 9-Speed, with Clutch
SHIFT LEVER
MicroShift Advent, 9-Speed with Bearing Movement
CRANKSET
Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
BOTTOM BRACKET
Sealed Cartridge Bearing, Square Taper
CHAIN
KMC X-9
CASSETTE
Sunrace, 9 Speed, 11-46T
BRAKES FRONT
Tektro M275 Hydraulic Disc, 180mm Rotor
BRAKES REAR
Tektro M275 Hydraulic Disc, 160mm Rotor
BRAKE LEVERS
Tektro M275 Hydraulic Disc
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM
Marin 3D Forged Alloy, 45mm
GRIPS
Marin MTN, Closed End
HEADSET
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST
Marin Alloy, 30.9mm
SADDLE
Marin Speed Concept
PEDALS
Nylon Platform
