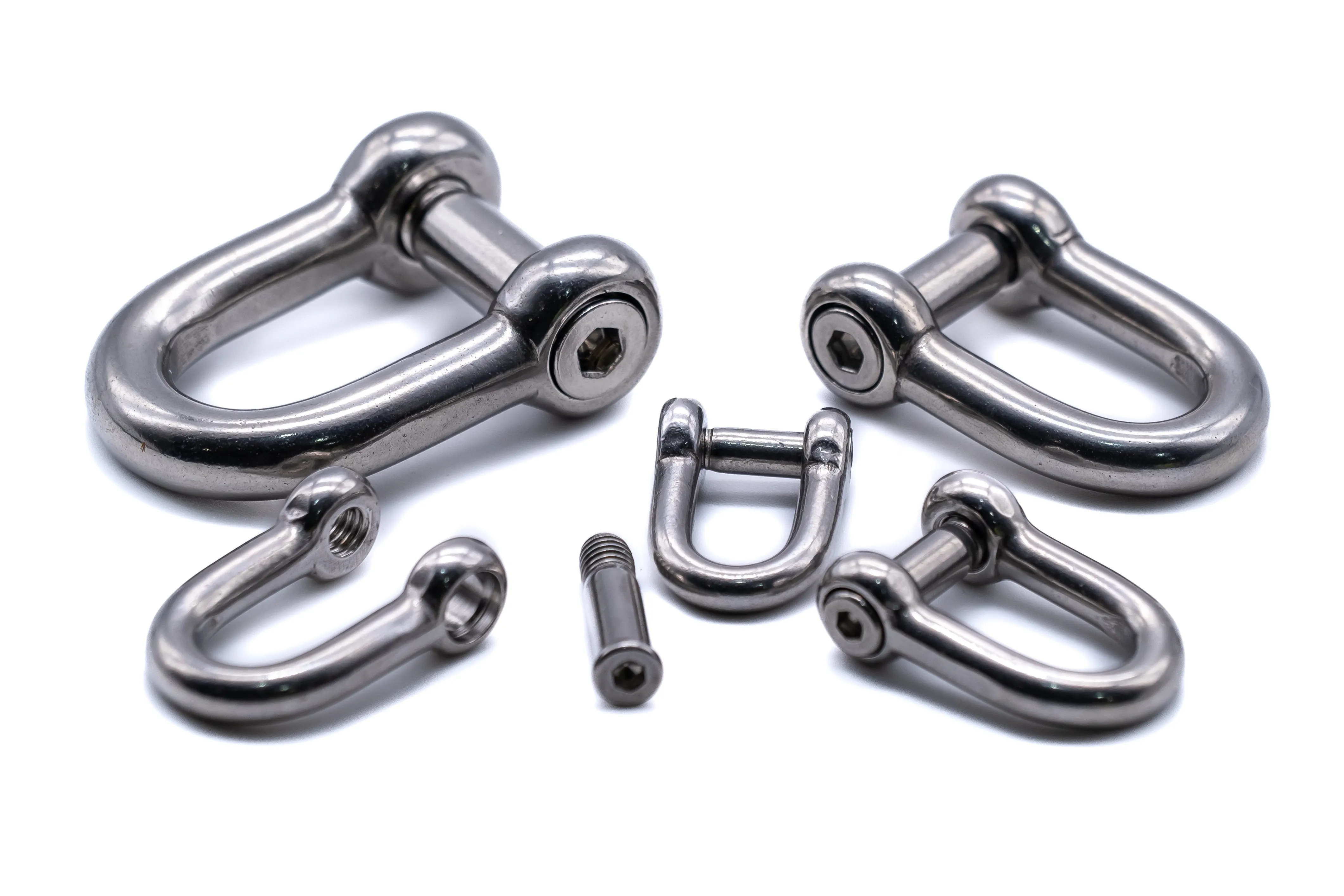

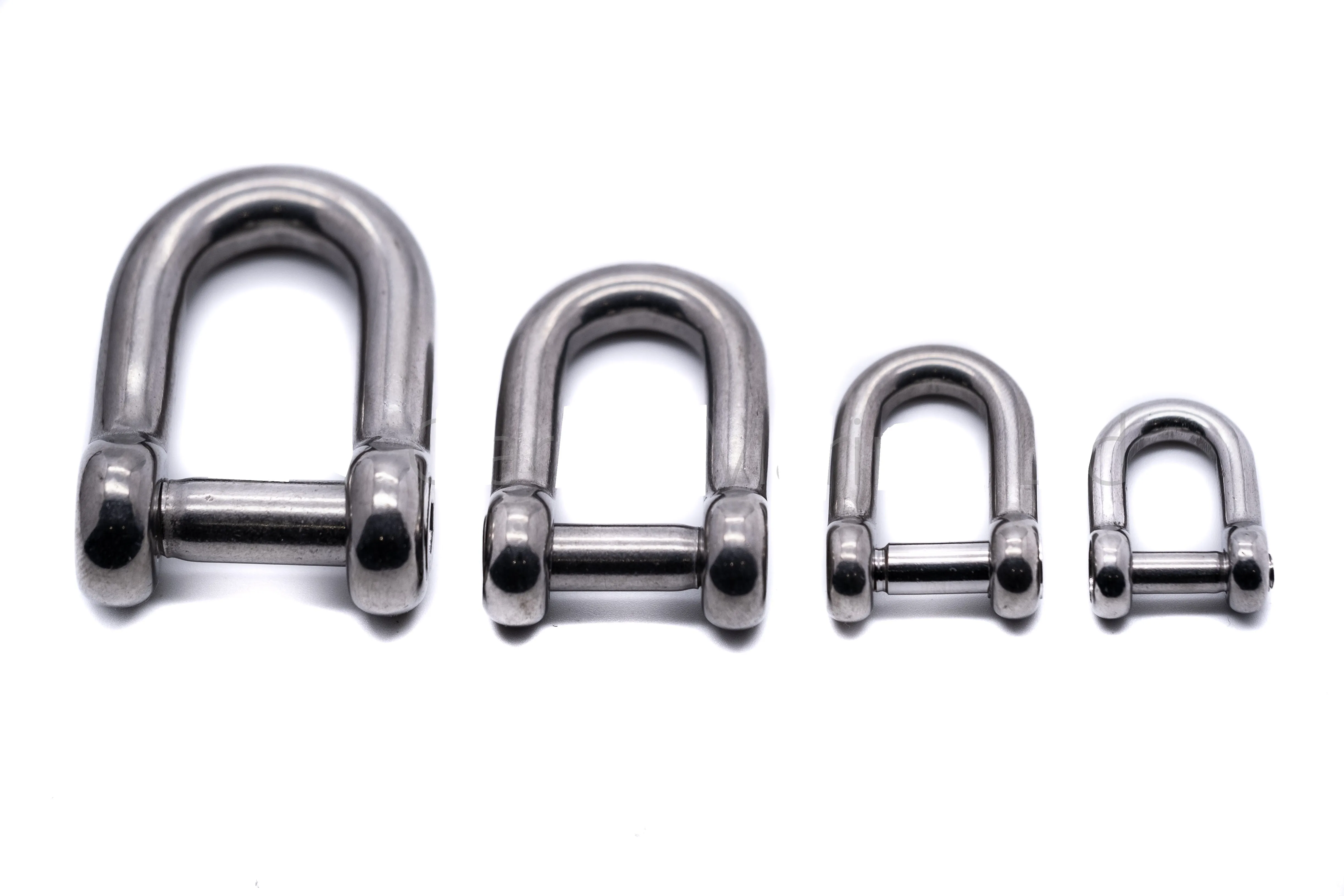

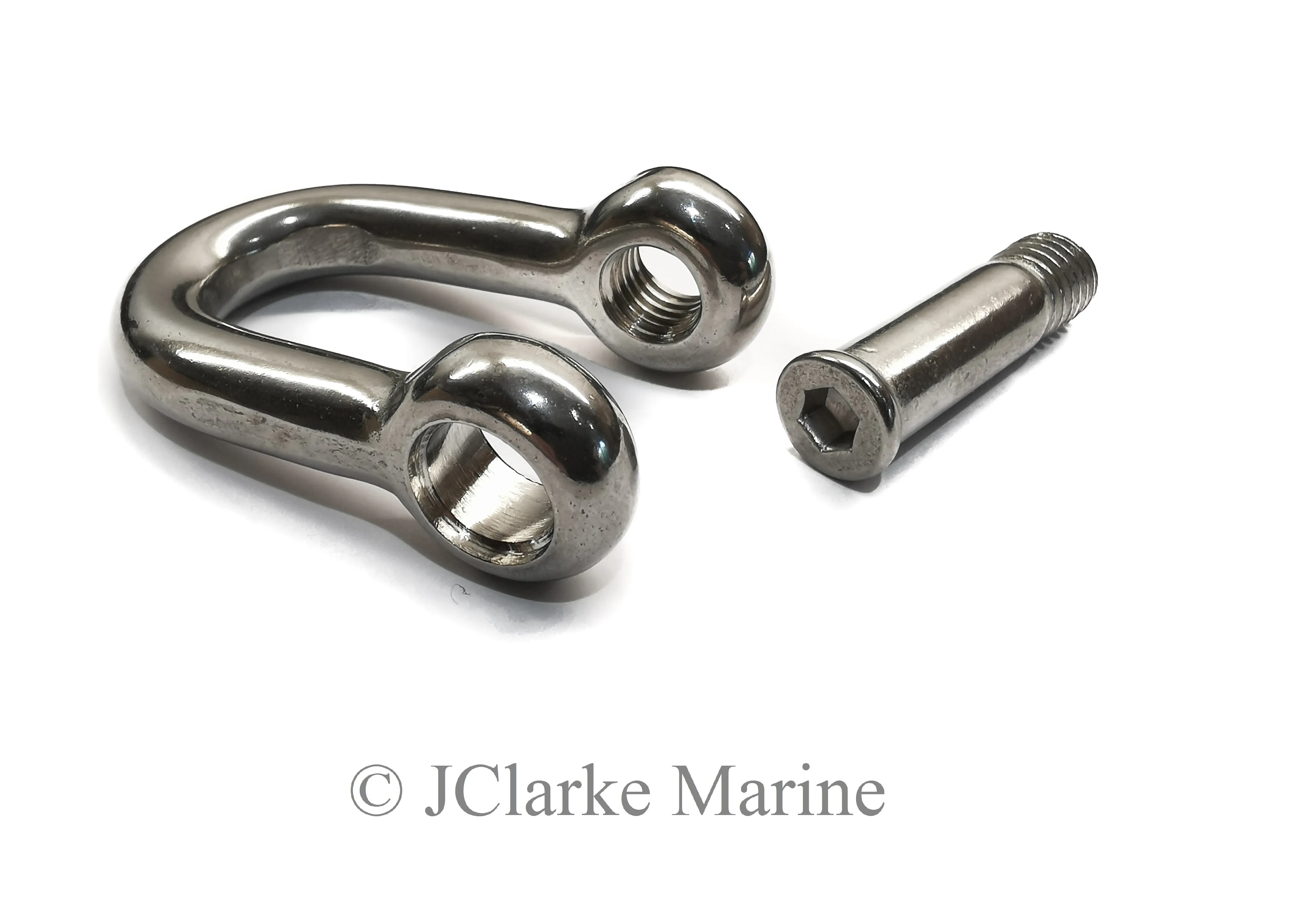

Made from 316 A4 marine grade stainless steel, our hex allen key shackles can withstand the most harsh conditions and chemicals that normal stainless steel can not.
Example of the drop boxes above
If you choose "M6" and "Pack of 10" you will receive
- 10pcs of M6 Hex shackles
We can cater for large bulk orders. Just ask.

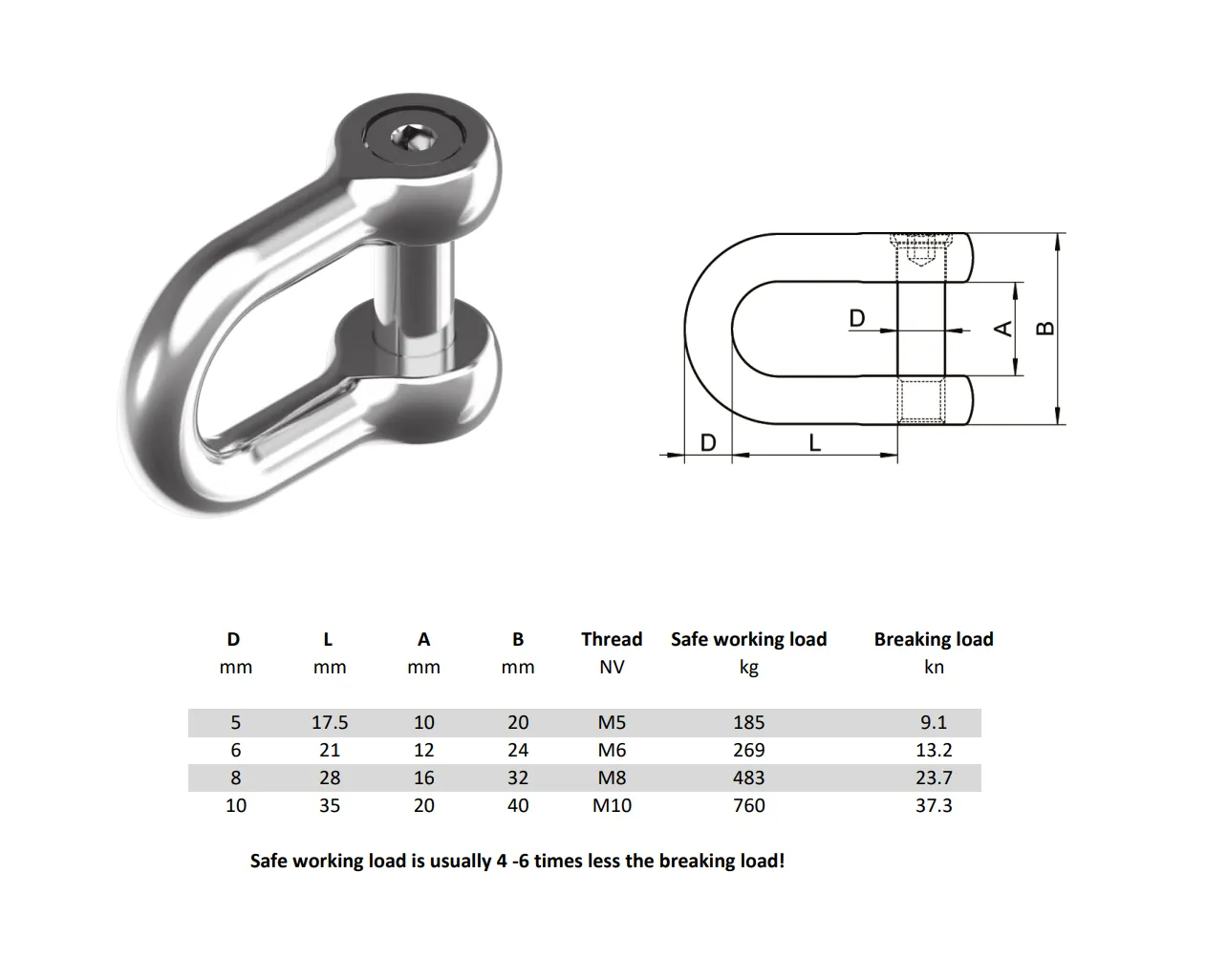

See other photos for specification diagram and measurement table
5mm
Marine grade stainless steel 316 A4
Thickness of pin and shackle 5mm
Inside length of shackle 17mm
Overall length 29mm
Inside width of pin 10mm
Over all width 20mm
6mm
Marine grade stainless steel 316 A4
Thickness of pin and shackle 6mm
Inside length of shackle 22mm
Overall length 37mm
Inside width of pin 14mm
Over all width 25mm
8mm
Marine grade stainless steel 316 A4
Thickness of pin and shackle 8mm
Inside length of shackle 28mm
Overall length 48mm
Inside width of pin 16mm
Over all width 31mm
10mm
Marine grade stainless steel 316 A4
Thickness of pin and shackle 10mm
Inside length of shackle 35mm
Overall length 60mm
Inside width of pin 20mm
Over all width 40mm
Marine grade stainless steel 316 A4
Thickness of pin and shackle 5mm
Inside length of shackle 17mm
Overall length 29mm
Inside width of pin 10mm
Over all width 20mm
6mm
Marine grade stainless steel 316 A4
Thickness of pin and shackle 6mm
Inside length of shackle 22mm
Overall length 37mm
Inside width of pin 14mm
Over all width 25mm
8mm
Marine grade stainless steel 316 A4
Thickness of pin and shackle 8mm
Inside length of shackle 28mm
Overall length 48mm
Inside width of pin 16mm
Over all width 31mm
10mm
Marine grade stainless steel 316 A4
Thickness of pin and shackle 10mm
Inside length of shackle 35mm
Overall length 60mm
Inside width of pin 20mm
Over all width 40mm
